Regia mobile HD con 3 telecamere
L’OB Van 1 è un mezzo snello e veloce HD 1080p e 1080i e dotato di 3 telecamere HD Grass Valley, Mixer Video For-a, BLT o EVS, Mixer Audio Yamaha M7CL, Intercom RTS Odin.

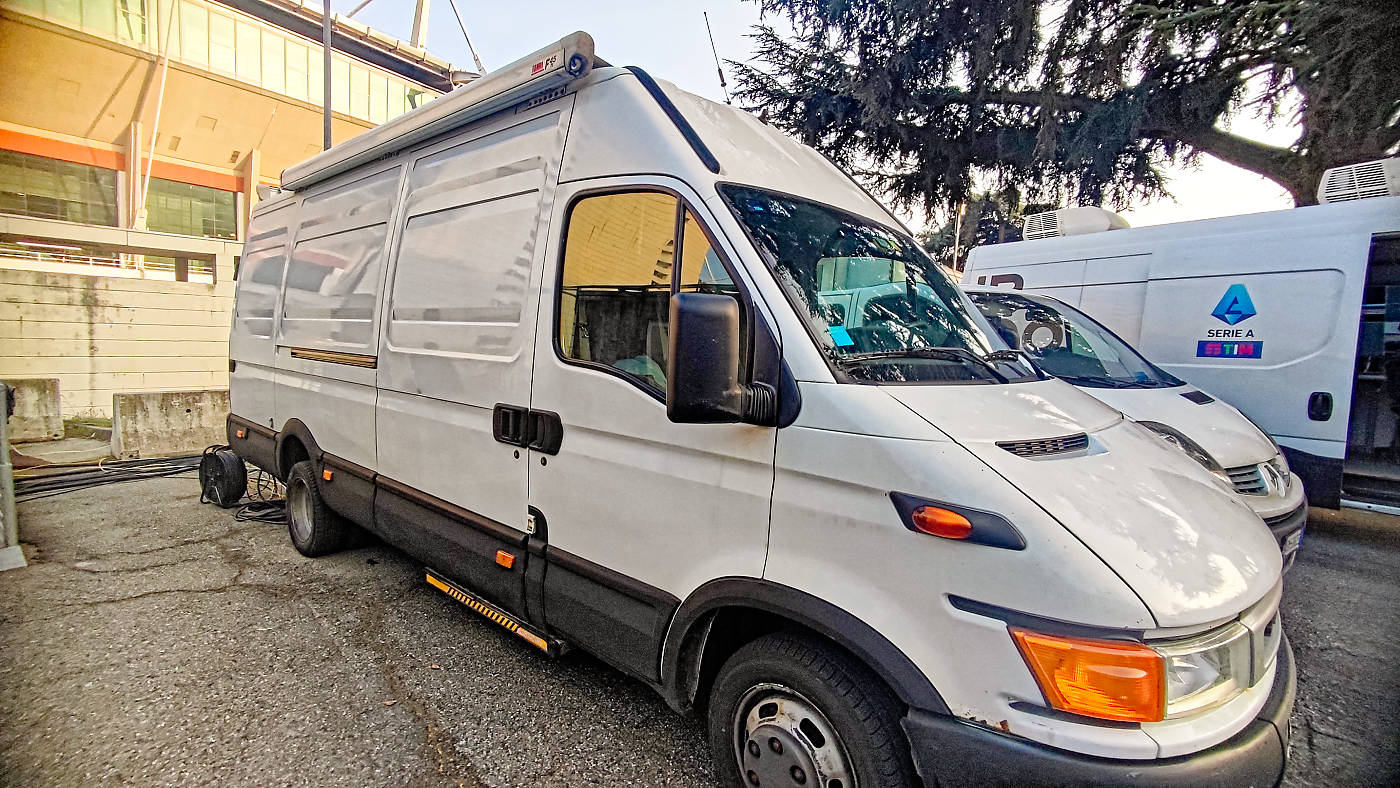

Truck
- 35C13V IVECO
- Length: 7.00 m
- Height: 2.90 m
- Width: 2.10 m
- Weight: 35 q
Plate
- CT 145 EG
Immagini
Equipment

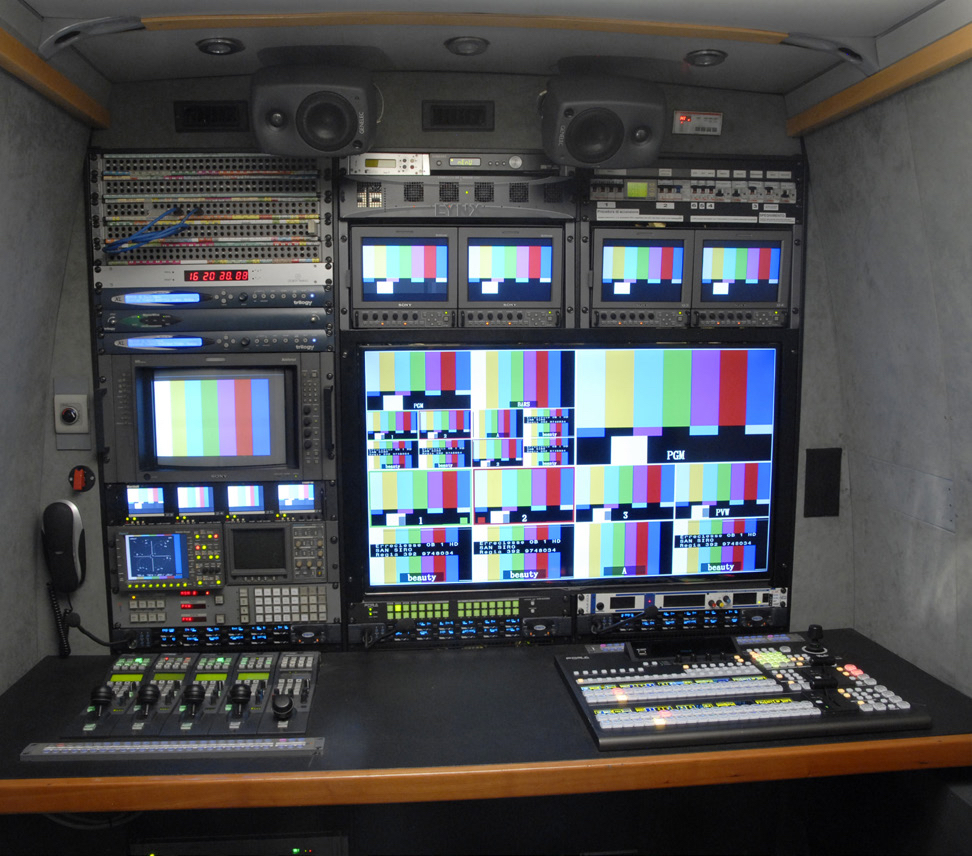

VIDEO | ||
|---|---|---|
| HDTV 1080p/1080i Cameras | 3 | Grass-Valley LDX86N |
| HDTV available lenses Canon | 1 | 72×9.3 Digi Super HD |
| 1 | 22×7.6 | |
| 2 | 17×7.6 | |
| 1 | 11×4.7 wide | |
| Fiber control camera units | 3 | XCU fiber with OCP 400 |
| HDTV Digital Video Switcher | 1 | HVS-110 For-à |
| HDTV Videorecorders | 2 | XD Cam |
| HDTV Disk recorders | 1 | BLT / EVS 6 channels |
Monitors | ||
| HDTV Control Monitors | TV-Monitor LCD 40”, BVMA-14F5M Sony, LMD9050 Sony, LVM170 Tv Logic LMD 9030 Sony, R72P-2SD Marshall | |
Engineering | ||
| HDTV Video Router | 1 | Multiformat 34×34 HD Pyxis SNELL |
| HDTV Video control instruments | 1 | Monitor Scope MS601AXW/SDI Hamlet |
| Main & Slave SPG Trilogy | 2 | Mentor XL with HDTV id and Mastermind automatic change over |
| Time code generator | 1 | Trilogy 5010 GPSII Evertz |
| Master Clock | 1 | Gorgy timing |

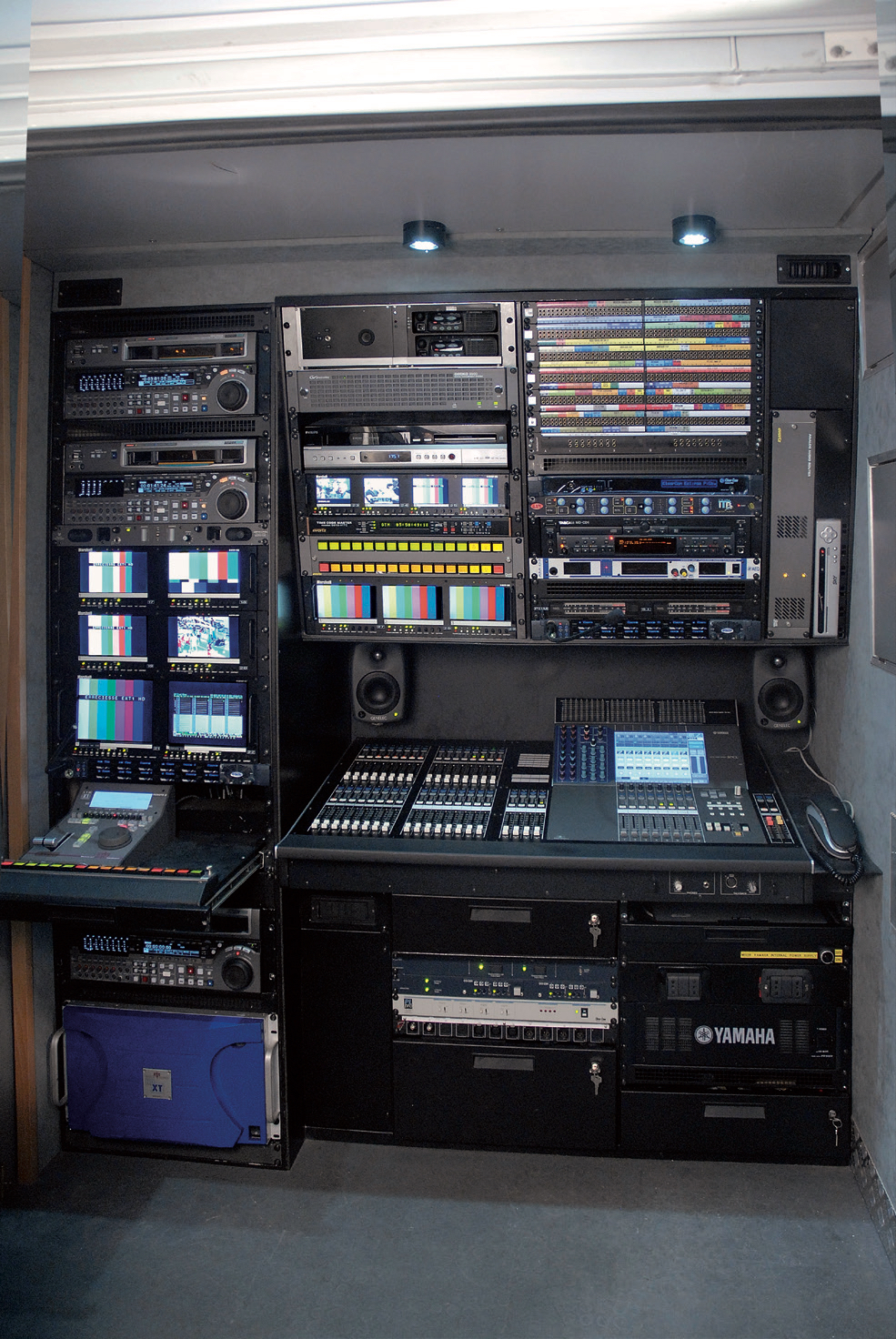

Audio | ||
| Digital audio mixer | 1 | M7CL 32 ch Yamaha |
| Audio control instrument | 1 | RTW |
| Audio signal distributor | Axon, Grass Valley | |
| Hybrid CD player/Minidisk recorder | 1 | MDCD1MKII Tascam |
| Embedded | 4 | Axon HEB20 4 AES/EBU |
| De-Embedded | 2 | Axon HDB20 4 AES/EBU |
| Audio monitor | 4 | 8030A Genelec |
| 2 | stereo audio monitor AM-03 AEQ | |
| 1 | stereo audio monitor AMP1A-LP10S | |
| Phone-hybrid | 1 | AEV ITB 302 |
| 1 | Cellular Hybrid | |
| 1 | with monitor, amplified loudspeaker, intercom | |
| Wireless UHF microphones | 3 | hand-held MTH300 Wisycom |
| 3 | Lavalliere MTP30-L Wisycom | |
Intercom | ||
| 16 channels intercom | 1 | RTS Odin-16P |
| Full duplex In Ear Monitor | 1 | system w/4 pocket transceiver |
| Wireless-headset | 2 | mobile Motorola GM360 |
| 4 | mobile Motorola GP340 | |
| Commentator booth | 2 | AB100 Clearcom / Sonifex |
